RRU/CPRI Clam
If you want to buy this product then call us – +8801733339707 or mail us – info@gpiasiatel.com.bd or simply click the “Make an Inquiry” button
About This Item

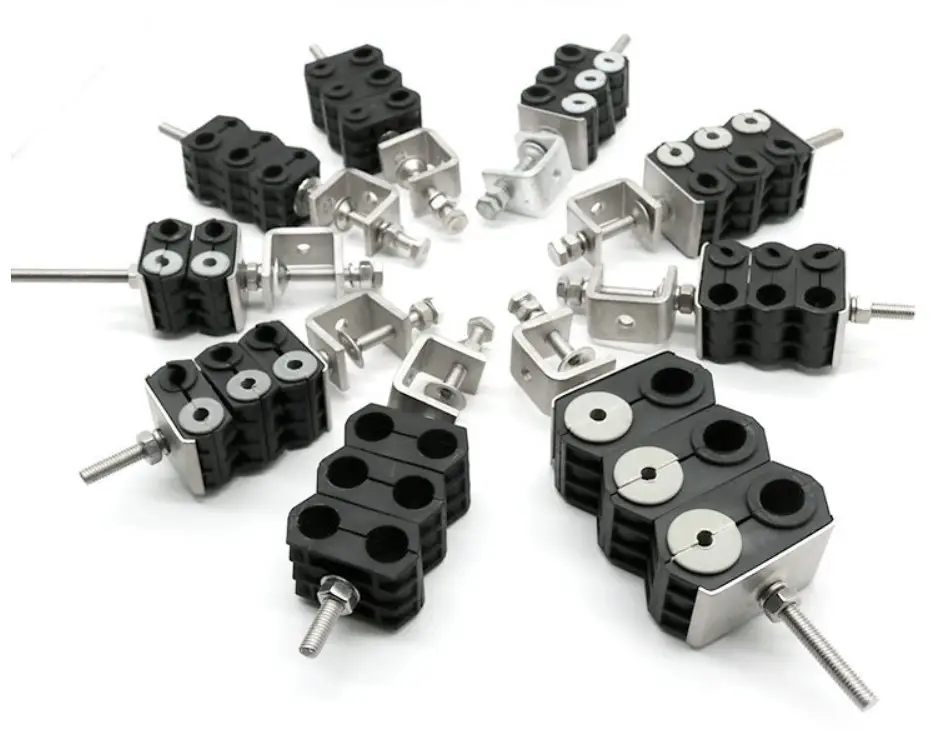

The Power and Optical Cable Clamp with cushion inserts is a kind of combined fixture; it is mainly applied to communication cable, power cable and CPRI cable. The plastic cable clamp is made from polypropylene, and the rubber part has good aging resistance, both of them possess good impact resistance and chemical resistance, they can protect the cable effectively. The metal part is made of stainless steel, which possesses acid proof and high tenacity. By using the bolt to adjust the clamping force, it can prevent the cable to slide.
| Size | 7mm,9-14mm |
| Compatible Diameter maximum | 14 mm | 0.55 in |
| Compatible Diameter minimum | 7 mm | 0.27 in |
| Includes | Angle adapter, plastic clamp, threaded rod, nuts,washer and rubber inserts |
| Material of metal part | Stainless steel 304 |
| Material of plastic part | PP/PA |
| Cables per clamp | 6 |
| Salt spray test | 168 h |
| Surface treatment | Passivated |
| Warranty | 3 years |
| Operating Temperature | -40 °C to +85 °C (-40 °F to +185 °F) |
| UV Resistance | ≥720 hours |
| OEM | Accepted |
| Application | Telecom cable installation |
